For
medium to large batches |
|
CF
18

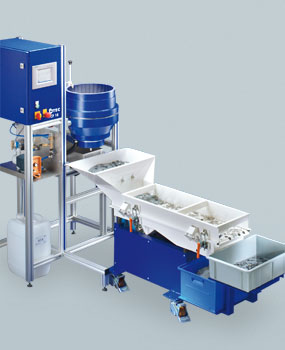

This type of machine with a container capacity of 18 liters
is designed for medium to large batches.
Standard equipment
- State-of-the-art technology for the application of super-fine polishing granules
- Frame with manual screening system as well as
deposit area for polishing media and workpieces
- LCD display shows operating hours, rotational speed
and process time
- Speed control via frequency inverter
- Programmable control
Optional equipment
- Dosing pump
- Process-controlled paste dosing
- Dosing unit with automatic rinsing system and
processor-controlled compound dosing
- Magnetic separation
- Automatic screening system
- Equipment for storing additional plastic containers
- Cascade containers
|
|
|
|
|
Container
capacity
[l] |
Inside
diameter
of container
[mm] |
Length
x Depth x Height
[mm] |
Weight
[kg] |
Power
input
[kVA/V] |
CF
1 x 18
|
18 |
333 |
880
x 1000 x 1620 |
127 |
0.9/230 |
CF
2 x 18
|
2
x 18 |
333 |
1380
x 1000 x 1620 |
200 |
1.8/230 |
CF
3 x 18
|
3
x 18 |
333 |
1880
x 1000 x 1620 |
234 |
2.7/230 |
CF
4 x 18
|
4
x 18 |
333 |
2405
x 1000 x 1620 |
350 |
3.6/230 |
